A new design of high efficiency and intelligent

One of the most brands in the casting industry

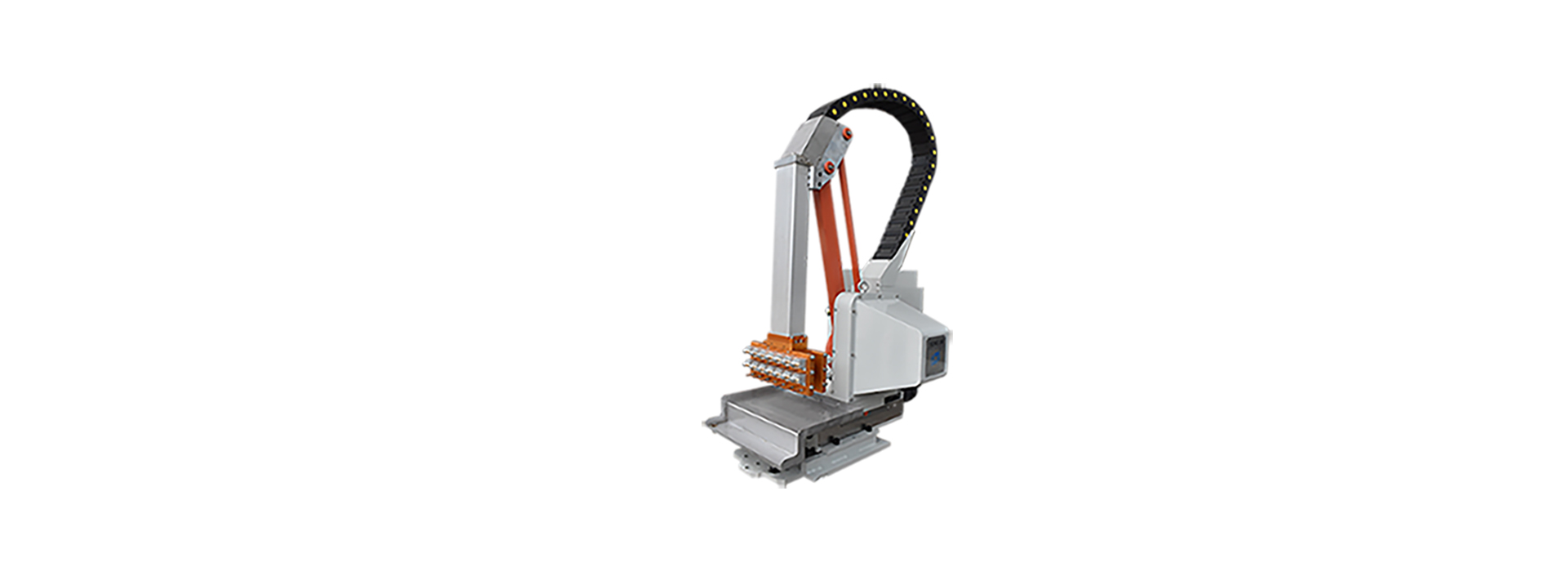

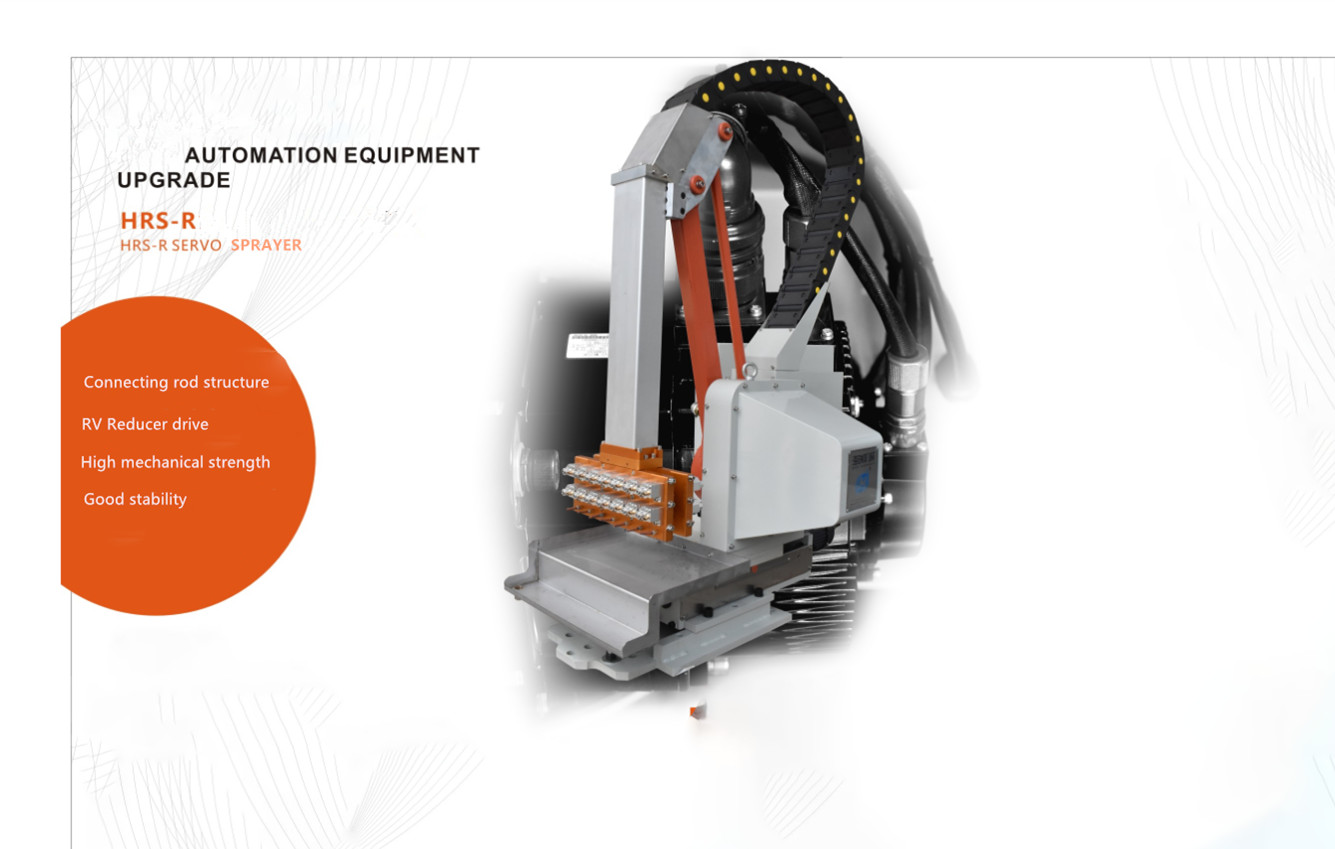

Connecting rod structure, worm gear reducer drive, simple is not simple

Single-servo motor system control, moving spray or fixed point continuous spray, cost-effective

It is a powerful weapon of high efficiency and low cost for die-casting enterprises to realize automatic production with die-casting machine and take out machine

Product Features

The structure is simple, fast, and stable.

Servo motor and worm gear reducer are adopted to ensure smooth operation and long service life.

It is very convenient to modify, adjust, and set parameters by using the human-machine interface of touch screen—digital arm position adjustment.

Double tube induction take-out detection device, accurate and stable, take out abnormal automatic alarm function.

With a two-finger translational clamping finger clamping mechanism, the workpiece is clamped stably.
