A new design of high efficiency and intelligent

One of the most important brands in the casting industry

Product Features

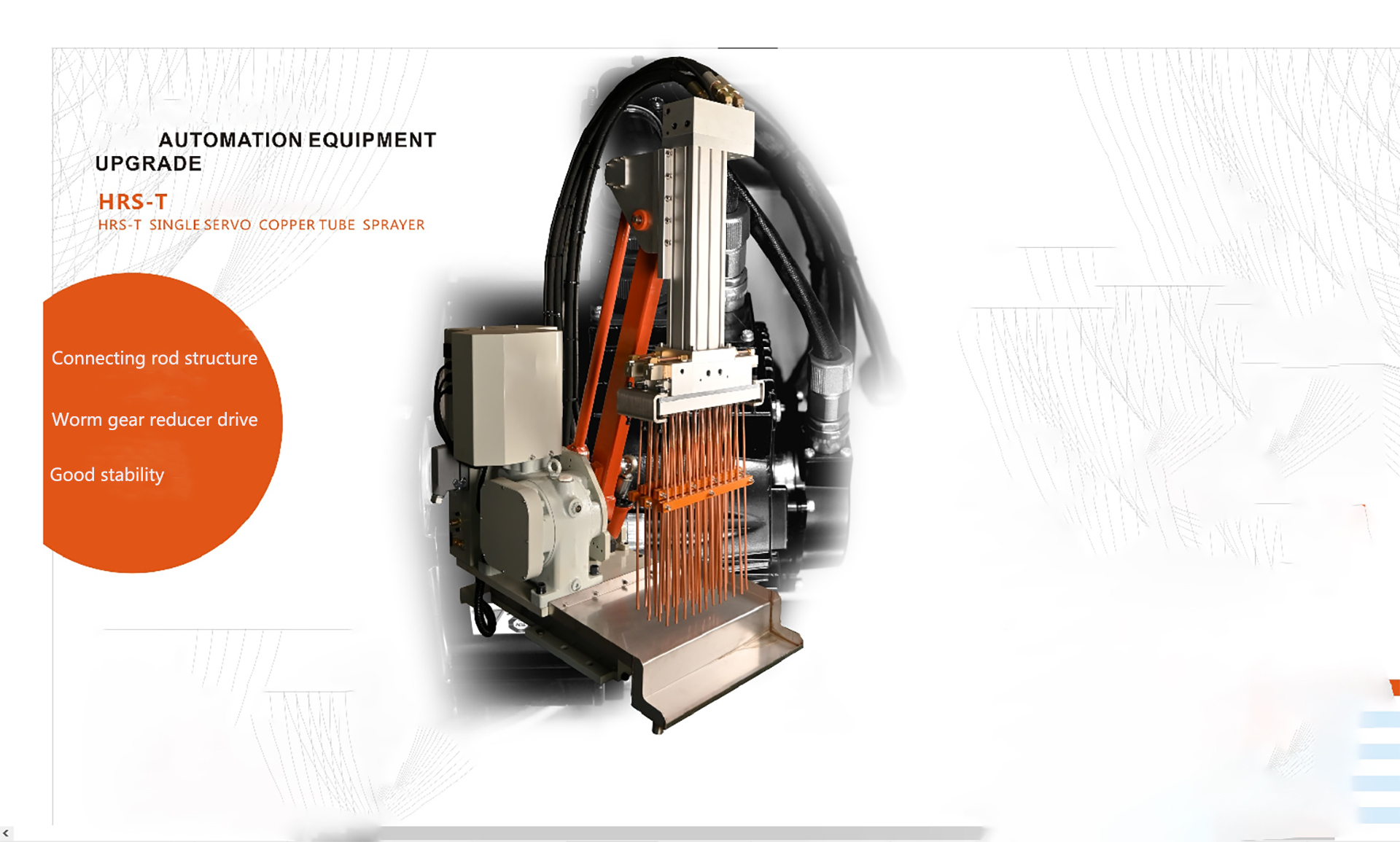

1. Connecting rod structure, worm gear reducer drive, high mechanical strength, good stability.

2. The servo motor control system on mobile, can move back and forth spray or fixed-point continuous spray, and back and forth times and continuous spray time can be set free with an electric die thickness adjustment function.

3. Have the function of entering the standby position ahead of time, shortening the spray downtime Spray and blow can be controlled separately, intermittent or continuous spray, and independent strong blowing.

4. The use of copper nozzle group is easy to use and easy to maintain.

5. The movable and fixed mold can be controlled at the same time or separately. It can not spray or blow without blowing when it is spraying and has the function of rising blowing.

6. It can be connected with the die-casting machine semi-automatically. It can also be connected with the die-casting machine and the fetching machine.
