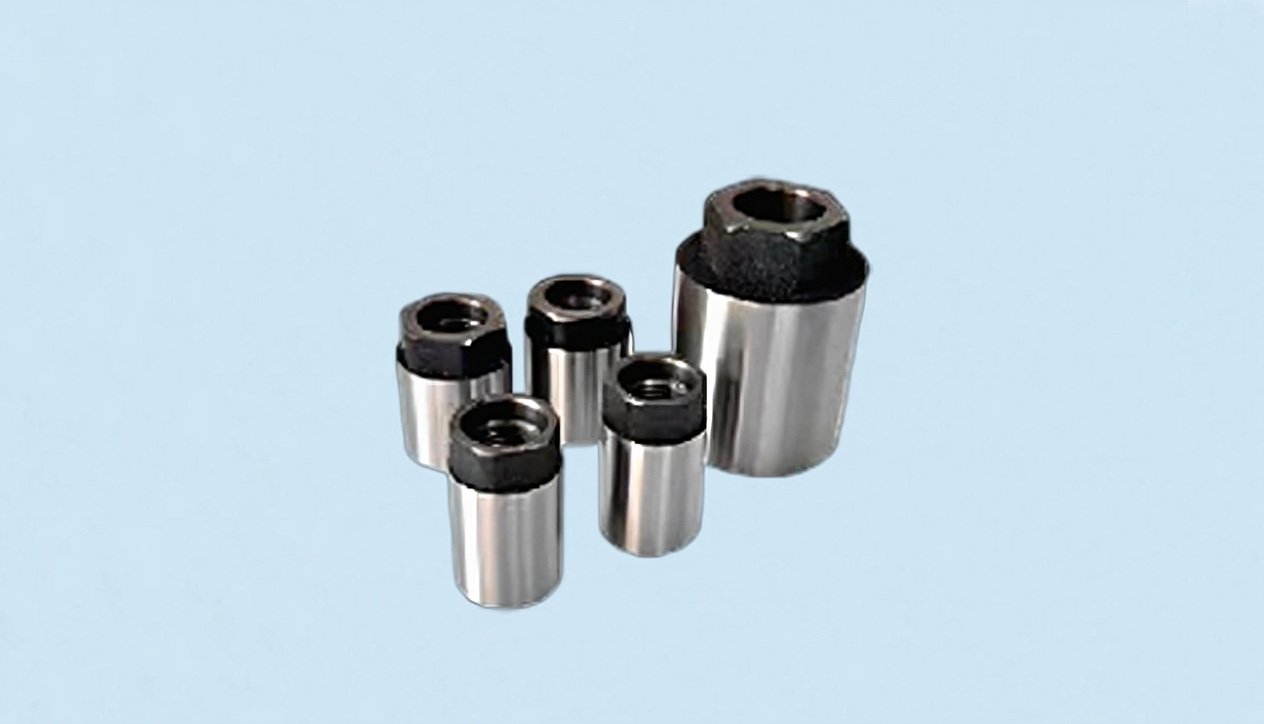

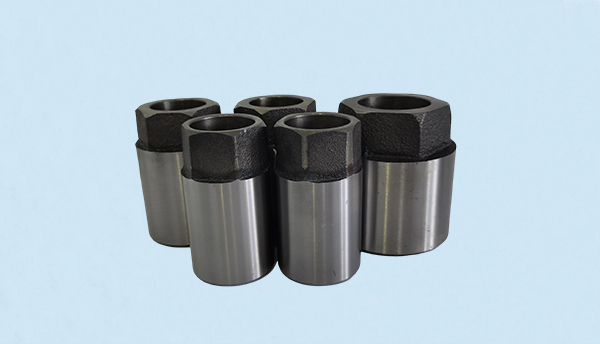

Plunger tip

We have all kinds of plunger tips suitable for different production needs. The specific choice depends on the material and design requirements of the casting. You can tell us your specific needs and our professional engineers will help you choose the most suitable plunger tip accessories for your machine.

DESCRIPTIONS

Product Name: Plunger Tip

The plunger tip is an important component in the die-casting machine. It is mainly used to inject the molten metal quickly and evenly into the mold cavity to form the desired castings.

Main Functions:

It delivers molten metal into the mold cavity through the injection system, perfectly filling the mold and ensuring the precision and integrity of the castings.

During the injection process, the plunger tip ensures the quality of the casting by controlling the speed and accounts for molten metal entering the mold. After the injection, it can help the molten metal solidify in the mold and separate the mold to prevent the casting from sticking to the mold surface.

Specifications:

Type 1:

Specification	Φ4070mm~φ150150mm
Material	Wear-resistant Alloy
Physical Properties	Hardness: HRC48±3
Performance	> 20,000 times

Type 2:

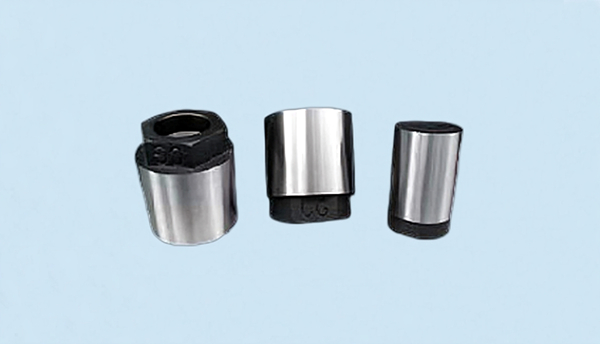

plunger tip.jpg

Specification	Φ4080mm~φ170150mm
Material	Wear-resistant ductile iron（containing trace amounts of rare elements）
Heat Treatment	High-frequency quenching (to ensure surface hardness and core strength)
Physical Properties	Spheroidization Level: 4 Pearlite Content: ≥80% Hardness: HRC45-48
Performance	> 30,00 times

Type 3:

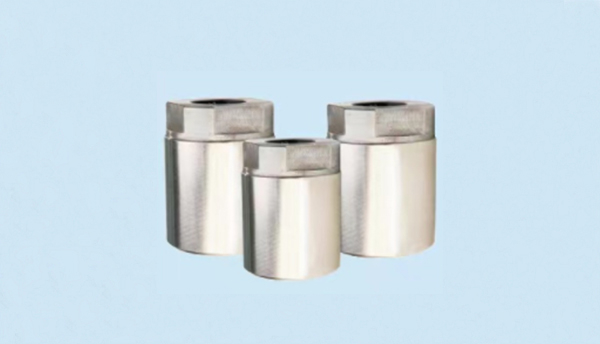

plunger tips for sale.jpg

Specification	Φ4080mm~φ170150mm
Material	Wear-resistant grey cast iron (containing trace amounts of rare metal elements)
Heat Treatment	Surface high-frequency quenching (to ensure surface hardness and core strength)
Physical Properties	Pearlite Content: ≥70% Hardness: HRC45-48
Performance	> 50,00 times

We have all kinds of plunger tips suitable for different production needs. The specific choice depends on the material and design requirements of the casting. You can tell us your specific needs; our professional engineers will help you choose the most suitable plunger tip accessories for your machine.
