EV Castings Electric Vehicle Castings

2024-08-13 By Cherry

Introduction

As the world's attention to sustainable development

intensifies, electric vehicles are rising at an alarming

rate in today's automotive industry, leading the transformation

of the transportation field.

Electric vehicles (EVs) are gradually becoming the

mainstream of future transportation.

The manufacture of electric vehicles is inseparable from

various high-quality castings. One of the core components

of electric vehicles is these castings.

These castings play a vital role in ensuring vehicle performance,

safety and reliability.

This article will explore the importance of electric

vehicle castings, the manufacturing process, and the role of

die-casting machines in them.

What are electric vehicle castings?

Electric vehicle castings refer to metal casting products used

to manufacture various components of electric vehicles.

These components include body frames, battery housings,

drive systems, etc.

Castings must not only have good mechanical properties

but also meet requirements such as lightweight

and corrosion resistance to improve the energy efficiency

and safety of the entire vehicle.

The importance of electric vehicle castings

Electric vehicle castings must not only withstand various

forces and vibrations during vehicle operation, but also meet

the requirements of lightweight, high strength, and high

precision.

For example, battery casing castings need to have

good sealing and protection properties to protect the battery

from the external environment; frame and chassis castings

need to provide sufficient strength and rigidity to ensure

the stability and handling of the vehicle.

1. Lightweight design: Electric vehicles need to reduce

weight as much as possible to increase driving range.

By using high-strength lightweight materials, castings

can effectively reduce vehicle weight.

2. Heat dissipation performance: The power system

of electric vehicles generate a lot of heat during operation,

and good heat dissipation performance is essential to extend

battery life.

Suitable casting materials can help achieve better heat

dissipation.

3. Structural strength: Vehicles are affected by various

external forces during driving, so castings must have

sufficient strength and toughness to ensure driving safety.

4. Production efficiency: Modern manufacturing processes

can greatly improve production efficiency, making large-scale

production possible, thereby reducing costs.

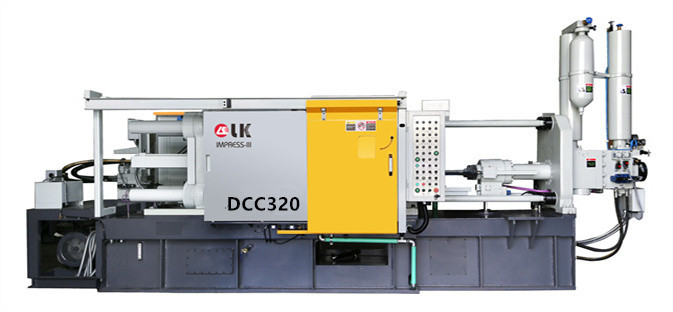

The key role of die-casting machines in the production

of electric vehicle castings

Die-casting machines are one of the important equipment for

producing electric vehicle castings.

It can produce castings with complex shapes and precise

dimensions by quickly injecting molten metal into the mold

cavity under high pressure.

Taking the production of electric vehicle motor housing as an

example, LK die-casting machine can form complex internal

structures in a short time, greatly improving production

efficiency.

Moreover, advanced die-casting machines can

accurately control parameters such as pressure, speed, and

temperature to ensure the quality stability of castings.

For example, a well-known automobile brand has successfully

produced integrated body structure castings using the latest

large-scale die-casting machines, which not only reduce

the weight of the body but also improves the overall strength.

Die-casting machine is an efficient metal-forming equipment

that uses high pressure to inject molten metal into the mold to

form the desired shape.

In electric vehicle manufacturing,die-casting machines

play a vital role:

1. High precision

Die-casting machines can achieve high-precision molding, which

is particularly important for electric vehicle parts with

complex structures and high detail requirements.

For example, key parts such as gears and bearings in the

drive system requires extremely precise dimensions to ensure

their normal operation.

2. Fast Production

Compared with the traditional sand-casting process, die casting

has a faster production speed.

This enables manufacturers to respond quickly to market

demand and accelerate the time to market of new models.

3. High material utilization rate

Due to the use of closed molds, there is very little metal

waste in the die-casting process.

This not only helps to reduce costs but also reduces

environmental pollution and achieves resource reuse.

4. Material selection for electric vehicle castings

In order to meet the special needs of electric vehicles,

commonly used casting materials include aluminum alloys,

magnesium alloys and high-strength steel.

Aluminum alloys have good lightweight performance and

corrosion resistance;

magnesium alloys are lighter, but the cost is relatively high;

high-strength steel has a good balance between strength and cost.

5. Manufacturing process of electric vehicle castings

In addition to die casting, other manufacturing processes such as

sand casting and lost foam casting are also used in the production

of electric vehicle castings.

Each process has its own characteristics and scope of application.

Sand casting is suitable for the production of large and

complex-shaped castings, but the production efficiency is

relatively low.

Lost foam casting can produce castings with high precision

and complex internal structures.

6. Quality control of electric vehicle castings

Strict quality control is the key to ensuring the quality of

electric vehicle castings.

This includes the inspection of raw materials, monitoring

during the production process, and inspection of the finished

products.

The use of advanced testing equipment such as X-ray flaw

detection and ultrasonic testing can detect defects in

castings promptly to ensure that their quality

meets the standards.

VII. Future development trends of electric vehicles

With the continuous advancement of electric vehicle technology,

the requirements for castings will become higher and higher.

In the future, electric vehicle castings will develop in the

the direction of lighter, stronger, and more precise.

1. Intelligent manufacturing: Combining artificial

intelligence and automation technology will further

improve the efficiency and flexibility of die-casting

machines and the entire production line.

2. New material application: New alloy materials and

composite materials will be more used in electric vehicle

manufacturing to improve performance and reduce weight.

3. Environmental protection concept: In the design and

the production process, more attention will be paid to environmental

protection and sustainable development, and the maximum utilization

of resources will be achieved through the circular economy model.

New materials and manufacturing processes will continue to

emerge, and at the same time, production equipment such as

die-casting machines will continue to be upgraded and improved

to meet market demand.

VIII. Conclusion

As an important part of electric vehicle manufacturing, the quality

and performance of electric vehicle castings directly affect the quality

and market competitiveness of vehicles.

The application of advanced equipment such as die-casting machines

and the continuous innovation of manufacturing processes will

provide strong support for the development of the electric vehicle

industry. We have reason to believe that in the future, electric

vehicle castings will achieve higher quality and more efficient

production is driven by technological innovation, and contribute

more to the popularization and development of electric vehicles.

Key tools for development. With the continuous advancement of

technology, we have reason to believe that in the near future,

electric vehicles will become more popular, and the manufacturing

process behind them will continue to innovate, bringing us a better

travel experience.
